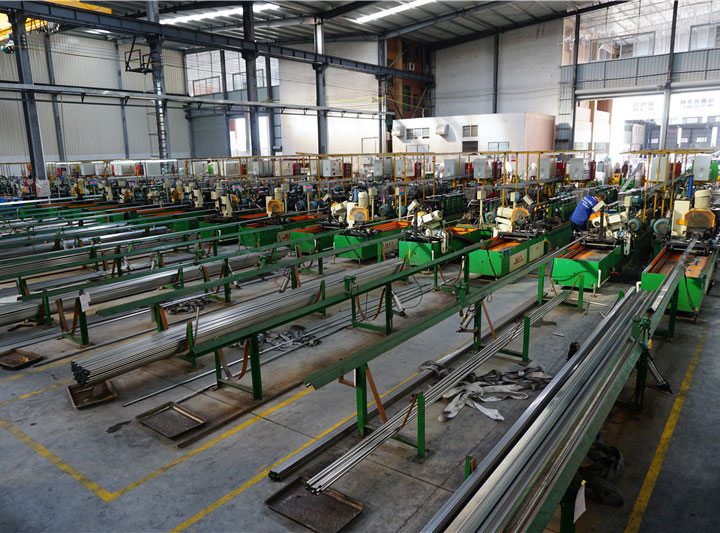

Pipe Production Line
The tube mill is widely used in household commodities, shoe racks, public facilities, and guardrails such as all kinds of clothes racks, retractable poles, article racks, all-purpose combination racks, tables, and chair legs, indoor handrails, ship and bus racks, and outdoor guardrails.
The machine is able to produce stainless steel pipe/ tube under mass production.
The process of machine works starting from flatting, forming, welding, annealing, polishing, sizing, straightening, finishing, cutting, and to tube unloading. It can be achieved at one time.
The machine adopts humanized design, featuring easy and safe to operate, labor saving, cost reduction, reducing lose and increase value of the product to reach high efficiency.
Pipe/Tube specification of the machine : dia. 9.5mm - dia. 406.4mm(Ø3/8”-Ø16").

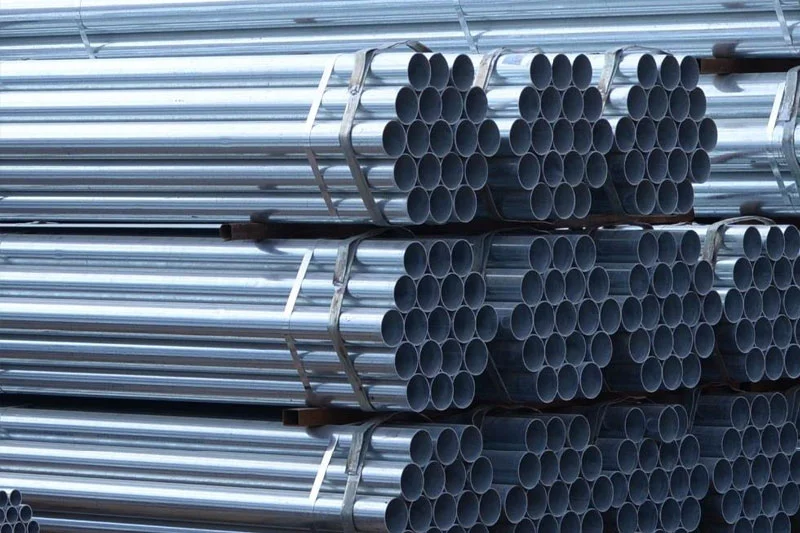

Stainless steel tube mill can make different type of stainless pipe/tube which are round, square, flat square type of pipe/ tube.
Tube Mill  or Pipe Production Line Process:

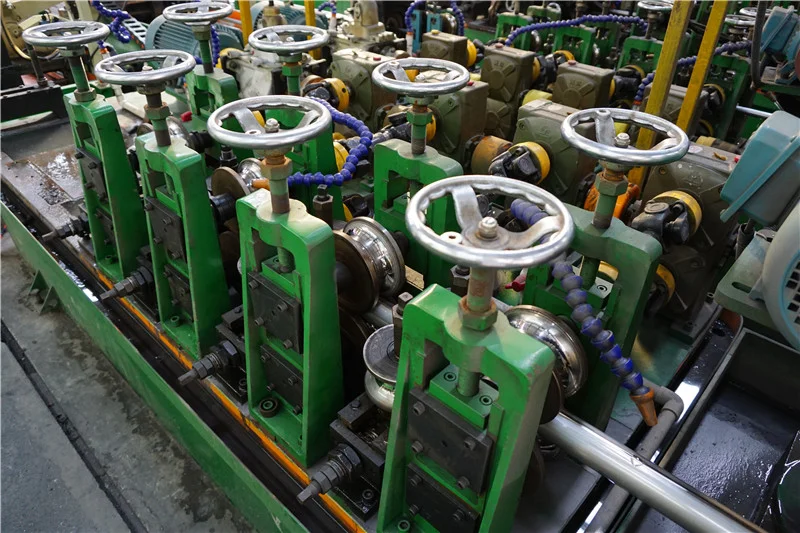

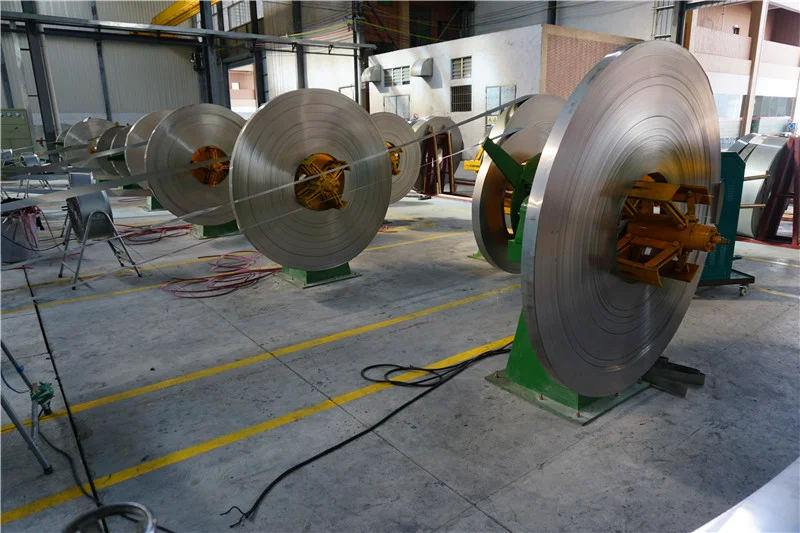

Firstly, the stainless steel strips are made to go through various quality checks and are trimmed at the edges. The strips pass through the number of rollers as per the required size. In the tube mill, the strip is gradually converted into a tubular shape. The fitted welding machine is then used to weld trim edges of the strip welding process. In this way, rolled pipes and tubes are formed.
Videos
Round pipe making machine
Fully automatic stainless steel tube manufacturer
INQUIRY
Square pipe making machine
High speed ss pipe polishing line for round pipes
INQUIRY
Specification
ModelAxle
(mm)
Thickness
(mm)
Round tube diameter
(mm)
Square Tube
(mm)
Speed
( M³ )
Space WxHxL
(M³)
Power
(kw)
BS-3030mm0.3~0.8Φ6.5~Φ1910x10, 15x153~7m2.2x2x1821
BS-4040mm0.4~1.5Φ9.05~Φ31.815x15, 25x252.5~7m2.4x2x2025
BS-5050mm0.6~3.0Φ12.7~Φ50.819x19, 40x401.5~6m2.6x2x2235
BS-6060mm0.8~4.0Φ19.0~Φ76.225x25, 60x601.0~5m2.8x2x2343
BS-7070mm1.2~5.0Φ25.4~Φ114.330x30, 90x900.5~4m3.5x2x2558
BS-8080mm1.5~5.5Φ38.1~Φ152.440x40, 120x1200.4~3m4.0x2x2870
BS-9090mm2.0~6.0Φ50.8~Φ177.850x50, 140x1400.4~3m4.0x2x32100
BS-100100mm2.5~7.0Φ76.2~Φ21960x60, 170x1700.3~2.5m5.0x2x35115
BS-120120mm3.0~9.0Φ127~Φ318100x100, 250x2500.3~2m6.0x2x38125
